Max.1600°C Industrial Electric Heating Element Silicon Carbide Sic Heater For Furnace Kiln

Place of Origin : China

MOQ : 1/pcs

Price : 5/usd/pcs

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000/pcs/month

Delivery Time : 3workdays

Packaging Details : Strong wooden box for Global shipping

Contact Now

Product descriptions from the supplier

Max.1600°C Industrial Electric Heating Element Silicon Carbide Sic Heater For Furnace Kiln

Product Description

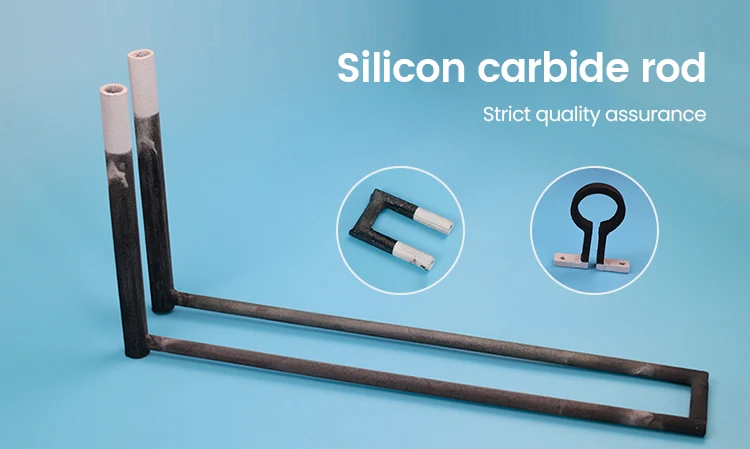

Silicon Carbide Rod Description
1,Silicon carbide heating element is one type of ceramic heating elements,which use six-party high purity green SiC powder as the main raw material.Silicon is recrystallized under 2200C high temperature to form finished materials.The using temperature up to 1450C under oxidation atmosphere,and constant working life up to 2000 hours.It is widely used in various high temperature electric furnaces and othe electric heating devices,such as in the industries of magnet,ceramics,powder metallurgy,glass,metallurgy and machinery,etc.
2,Protech silicon carbide SiC heater element is a kind of nonmetal high temperature electric heating element.It is made of selected super quality green silicon carbide as main material,which is made into blank,silicide under high temperature and re-crystallized. Max temperature 1600 deg C.
3 ,Because of silicon carbide use to the high temperature, high temperature resistance, oxidation resistance, corrosion resistance, fast temperature rising, long life, high temperature deformation is small, convenient maintenance and installation, etc. and good chemical stability.And automation control system supporting, get accurate constant temperature, and can according to the needs of the production process of automatic temperature adjustment by the curve. The use of silicon carbide heating is convenient, safe and reliable.

Diameter	Length of hot zone	Length of cold zone	Overall length	Range of resistance
8mm	100-300mm	60-200mm	240-700mm	2.1-8.6 ohms
12mm	100-400mm	100-350mm	300-1100mm	0.8-5.8 ohms
14mm	100-500mm	150-350mm	400-1200	0.7-5.6 ohms
16mm	200-600mm	200-350mm	600-1300	0.7-4.4 ohms
18mm	200-800mm	200-400mm	600-1600	0.7-5.8 ohms
20mm	200-800mm	250-600mm	700-2000mm	0.6-6.0 ohms
25mm	200-1200mm	250-700mm	700-2600mm	0.4-5.0 ohms
30mm	300-2000mm	250-800mm	800-3600mm	0.4-4.0 ohms
35mm	400-2000mm	250-800mm	900-3600mm	0.5-3.6 ohms
40mm	500-2700mm	250-800mm	1000-4300mm	0.5-3.4 ohms
45mm	500-3000mm	250-750mm	1000-4500mm	0.3-3.0 ohms
50mm	600-2500mm	300-750mm	1200-4000mm	0.3-2.5 ohms
54mm	600-2500mm	300-750mm	1200-4000mm	0.3-3.0 ohms
